GK-S Indicator-GK-S
- 量程
- Selectable
The affordable GK-S indicator offers unmistakeable results every time from its bright, clear display, while providing a simple user interface for efficient operation and quick results for weighing, checkweighing and check counting.
应用
![称重]( "称重")
称重![零件计数]( "零件计数")
零件计数![百分比称重]( "百分比称重")
百分比称重![检测称重]( "检测称重")
检测称重![检测计数]( "检测计数")
检测计数![累计称重]( "累计称重")
累计称重
特点
![背光显示屏]( "背光显示屏")
背光显示屏![水分测定]( "水分测定")
水分测定![RS-232 接口]( "RS-232 接口")
RS-232 接口![USB 接口]( "USB 接口")
USB 接口![外部校准]( "外部校准")
外部校准![日期]( "日期")
日期![时间]( "时间")
时间![多个称量单位]( "多个称量单位")
多个称量单位

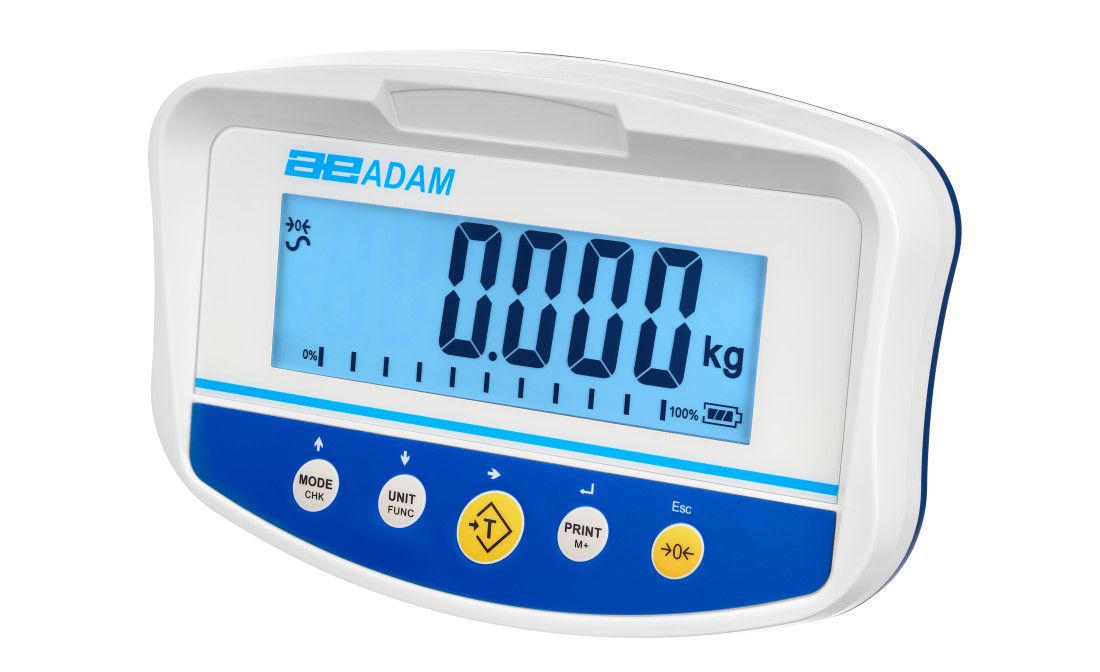

An affordable weight indicator with a large, bright display and an intuitive five-button keypad, GK-S offers a simple user interface for quick operation, along with a colour-changing checkweighing backlit LCD that offers large digits and a capacity tracker. The indicator — which is constructed of durable ABS plastic — includes a wall bracket for easy, secure mounting. Connect GK-S to any Adam platform scale to perform applications such as parts counting, percentage weighing, checkweighing and check counting.
特点和优点
- Colour-changing backlight in checkweighing mode to show if under, over or within acceptable limits
- Simple, 5-key operation allows for easy set up and use
- Large, 40mm-high easy to read digits on a bright background
- Capacity tracker built into display for easily monitoring possible overloads
- Solid ABS housing is durable for industrial use
- Selectable language for printing
- Hold function freezes the displayed weight, allowing time to elapse without losing the result
- Auto power-off to save energy
- Memory accumulation totals results
- External calibration allows for verification and adjustment with weights
- Optional USB interface simplifies data communication
- RS-232 interface provides speedy connection to computers and printers
- Optional rechargeable battery for operation almost anywhere
- Wall-mount bracket for placing indicator on vertical surface
- 1:1,000,000 Internal counting resolution for precise results
- Mains power cord
- Adam Connect compatible for wireless data transfer to printers and PCs
- A 5-year warranty means quality assured for years of use.
技术规格
型号
GK-S
UPC: 840886112677
计量学
量程
- Selectable
- Selectable
内部计数分辨率
- 1:1,600,000
- 1:1,600,000
般规格
称重单位
- g, kg, lb, lb:oz, oz
- g, kg, lb, lb:oz, oz
稳定时间
- 2
- 2
接口
- Optional USB, RS-232
- Optional USB, RS-232
校准
- 外部校准
- 外部校准
展示器
- Backlit LCD with capacity tracker with 40mm high digits
- Backlit LCD with capacity tracker with 40mm high digits
电源
电源
- AC adapter / Optional 6V dc 4.5aH
- AC adapter / Optional 6V dc 4.5aH
操作环境
工作温度
- -10° to 40°C / 14° to 104°F
- -10° to 40°C / 14° to 104°F
产品信息
外壳
- ABS塑料
- ABS塑料
净重
- 1.1kg
- 1.1kg
尺寸
外形尺寸
- 230x300x210mm
- 230x300x210mm
