AE 403 Indicators-AE 403M
- 量程
- Selectable

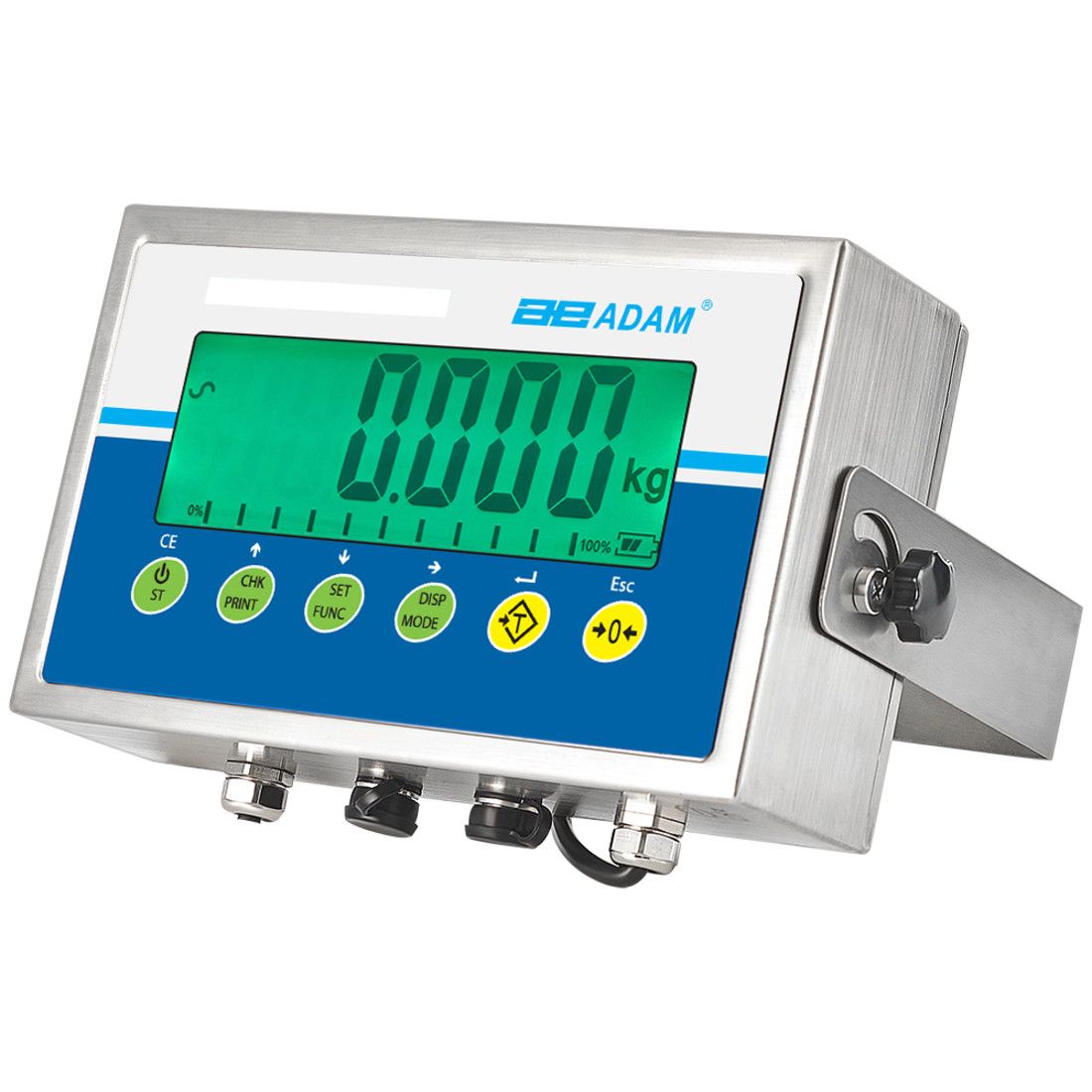

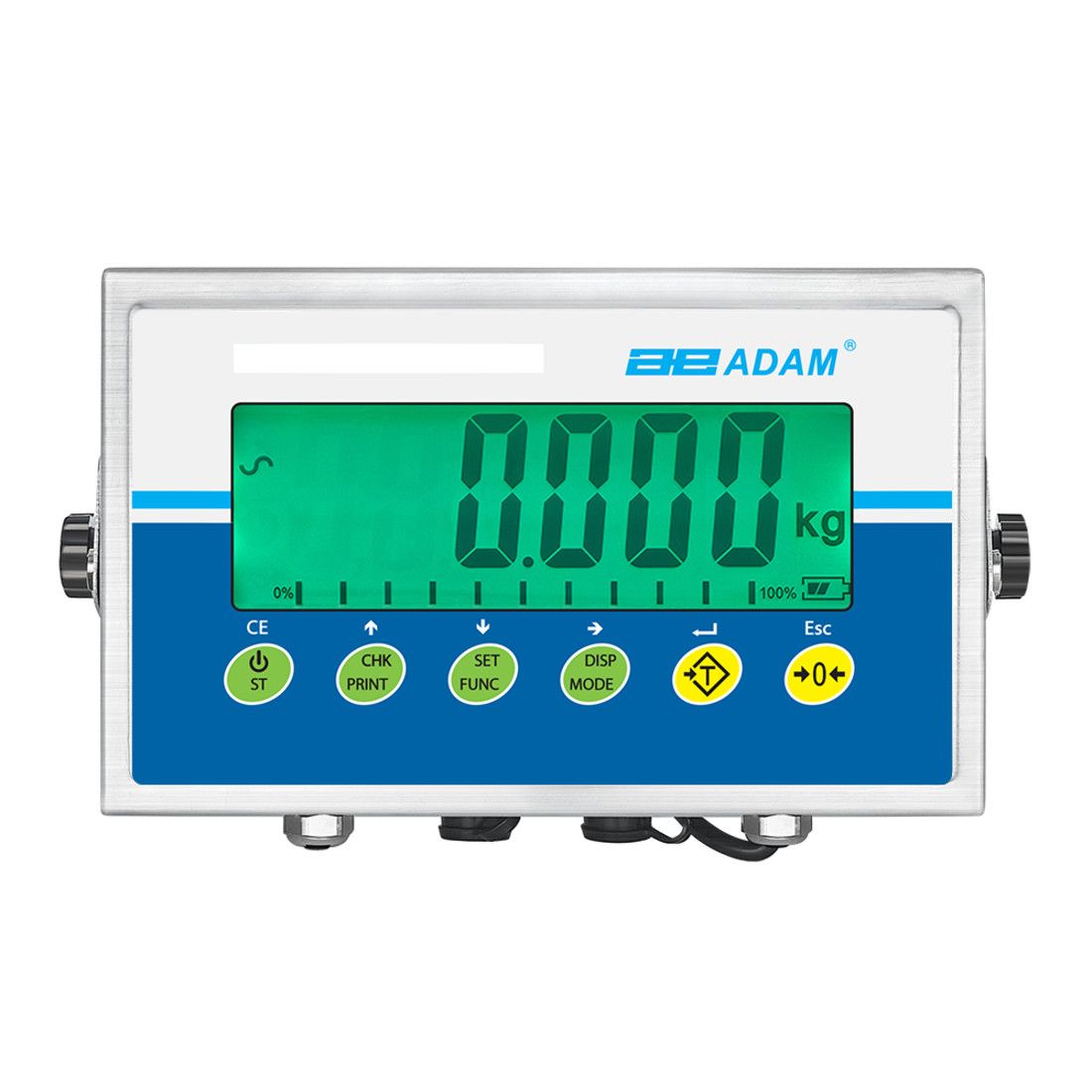

A rugged stainless steel design and IP68 rating make AE 403 the right choice for a variety of industrial applications. The back-lit display shows results in 40mm-high digits and changes color when the weight is over, under or within limits
应用
特点
.png "NRCS"){kind=icon}
A rugged stainless steel design and IP68 rating make AE 403 the right choice for a variety of industrial applications. The backlit display shows results in 40mm-high digits and changes color when the weight is over, under or within limits. Easily monitor overloads with the capacity tracker. The included bracket allows the AE 403 to be mounted on the wall or other vertical surface for optimum visibility and flexibility. The multi-function AE 403 indicator can be combined with weighing platforms to handle demanding industrial tasks. It performs well on the loading dock, at food processing plants, in agricultural settings, or in shipping and receiving areas. The AE 403 is the successor to the AE 402.
特点和优点
- Backlit display changes colour for quick notification of checkweighing limits
- Capacity tracker built into display for easily monitoring possible overloads
- Colour-coded keys facilitate quick recognition of the most frequently used buttons
- Robust metal housing protects internal components in harsh environments
- Rugged stainless steel construction for ultimate durability
- RS-232 interface provides speedy connection to computers and printers
- Wall-mount bracket for placing indicator on vertical surface
- External calibration allows for verification and adjustment with weights
- Checkweighing with audible alarm
- Hold function freezes the displayed weight, allowing time to elapse without losing the result
- Parts counting with preset sample sizes
- Selectable digital filtering for animal/dynamic weighing enables consistent results for moving subjects
- User-selectable scale division
- Zero-tracking feature ensures display returns to zero reading
- IP68-rated for protection against water and dust
- Rechargeable battery included for operation almost anywhere
- Programmable auto power-off to save energy
- 1:1,000,000 Internal counting resolution for precise results
- Adam Connect compatible for wireless data transfer to printers and PCs
- A 3-year warranty means quality assured for years of use.
技术规格
型号
AE 403M
UPC: 840886105037
计量学
量程
- Selectable
- Selectable
内部计数分辨率
- 1:1,600,000
- 1:1,600,000
般规格
称重单位
- custom unit, g, kg, N
- custom unit, g, kg, N
稳定时间
- 2
- 2
接口
- RS-232
- RS-232
校准
- 外部校准
- 外部校准
展示器
- Backlit LCD with 40mm high digits
- Backlit LCD with 40mm high digits
电源
电源
- Power cord / Internal rechargeable battery
- Power cord / Internal rechargeable battery
电池类型
- Lead Acid
- Lead Acid
Number of batteries
- 1
- 1
电池持续供电最长时间（小时）
- 120
- 120
操作环境
工作温度
- 0° to 40°C / 32° to 104°F
- 0° to 40°C / 32° to 104°F
产品信息
外壳
- Stainless steel
- Stainless steel
净重
- 3.5kg
- 3.5kg
尺寸
外形尺寸
- 240x145x95mm
- 240x145x95mm
Compliance Information
认证
- NMI trade approved, NRCS approved, NSF, EC type approved
- NMI trade approved, NRCS approved, NSF, EC type approved
